7-Ply Skateboard Deck Manufacturing: Construction, Control and Performance

A 7-ply maple deck is a designed structure where the performance of layers exceeds the simplicity of its construction. Veneer thickness, orientation of grain, type of adhesive, deck geometry, and other factors determine its responses and limits to flexing, durability to impacts, and overall performance.

At Vigor Tech, we approach deck development by connecting these construction variables with the intended rider and complete-board setup. For buyers evaluating a 7 Ply Skateboard Manufacturer, the priority is a defined specification that can be reproduced in production.

Maple Deck Construction: What Buyers Should Specify

Veneer Composition and Grain Direction

"Seven-ply" identifies seven bonded veneers; it does not confirm maple species, grade, or an all-maple layup.

Longitudinal veneers are resistant to transverse bending. Cross grain veneers control dimensional changes and strengthen across the grain. With respect to stresses that cause bending, they are more pronounced on the outermost plies.

Confirm the following with a 7-ply skateboard manufacturer:

•Raw Material: Species of Wood for each layer

•Veneer Grade: The degree of acceptability of splits and knots and irregularity of grain.

•Sequence of Layers: Grain direction and the balance and structure of each layer.

•Thickness: individual veneers and finished deck tolerances.

•Moisture Condition: How veneers are conditioned prior to bonding.

Why Thickness is Important Beyond Ply Count

In the context of a similar, flat section, bending stiffness is heavily reliant on thickness (approximately the cube) when other elements are kept constant. Skateboard behavior is also dependent on the layup and the concave.

Because of this, small changes in thickness can change how much a skateboard bends. Conclusions drawn from a casual side by side comparison of two 7 ply decks can be misleading if the deck dimensions and weight along with thickness are not considered.

Connecting Construction With Riding Performance

A 7 Ply Skateboard Manufacturer should distinguish stiffness, strength, and durability. They describe different behaviors and require different evaluations.

Pop should not be presented as a guaranteed consequence of maple or cold pressing. Tail wear, moisture exposure, structural damage, and rider technique also influence perceived response.

Process Control for Veneer Conditioning and Adhesive Application

Technology for Consistency in the Pressing Process

Pressing causes movement that exacerbates the gaps created by uneven moisture. Curing provides a suitable bond only when appropriate assembly time and the right adhesive are used.

Inadequate adhesive coverage affects the bond quality. Too much adhesive cannot substitute for proper contact of the veneers during curing.

For a 7 Ply Skateboard Manufacturer, these are production-control questions, not merely material-selection questions.

Cold Pressing and Shape Control

Vigor Tech's manufacturing capabilities include cold-press technology. Its practical value should be assessed through the resulting bond integrity and repeatable deck shape.

Cold and hot pressing require different adhesive and curing conditions. Neither label alone establishes superior performance. Relevant controls include:

•Pressure distribution across the molded profile.

•Veneer alignment during pressing.

•Adhesive-specific curing requirements.

•Shape retention after release and conditioning.

Machining and Surface Protection

The position of mounting holes influences alignment of a truck. Precision of profile (nose, tail, and rail) influences alignment. Inspections should reference specified datums and measurement positions.

Edge finishing and protective coatings assist with the management of moisture on uppermost surfaces. Wood still absorbs moisture with a moisture barrier finishing. Custom graphics must also be analyzed in terms of moisture barrier adhesion and coverage.

Deck Geometry: Comparing Two Vigor Tech Formats

When selecting wholesale blank skateboard decks, size should be matched to the target rider group, application, and market requirements. Common factors include deck width, overall length, wheelbase, and available standing area. Narrower widths are often selected for smaller riders or technical street applications, while wider formats may be preferred for stability, larger riders, or transition-oriented riding. Final dimensions should be confirmed according to the intended product positioning, tooling availability, and order requirements.

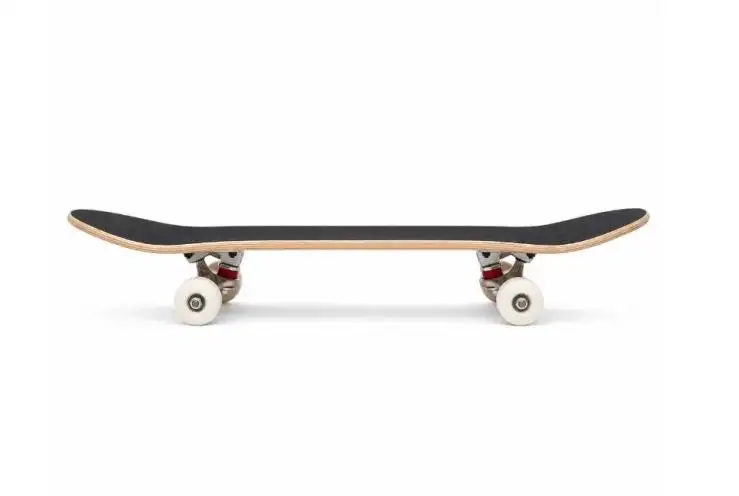

Our Maple Skateboard features a 31 × 8-inch format. Our 7.25 Complete Skateboard uses a 29 × 7.25-inch format.

Width alone cannot determine age suitability or riding performance.

A 7 Ply Skateboard Manufacturer must think about:

•Wheelbase: Outline your measurement system; mounting-hole spacing vs. actual axle spacing.

•Concave: Depth can be compared as well; measure it the same way.

•Nose and tail: Review length, angle, and standing space.

•Complete-board clearance: Find what can cause wheel-bite, check wheel diameter, truck height, bushings, and movement.

Sample Approval and Production Verification

A good sample does not guarantee consistent mass production. Buyers should establish written batch-acceptance criteria

Separate the Tests

•Dimensional Inspection: Width, length, thickness, mounting holes, and twist.

•Static Bending: Deflection and permanent set.

•Cyclic Loading: Loss of stiffness, progressive failure, cracking, or delamination.

•Impact Evaluation: Damage caused by impacts.

Any load-bearing test result should be reported together with the complete test conditions, including support span, load range, loading rate, conditioning requirements, and failure criteria. A statement that no load was exceeded has limited value unless the test setup, parameters, and evaluation method are clearly defined.

Lock the Production Specification

Retain an approved sample alongside the drawing, material requirements, component list, graphics, and inspection criteria. Specify sampling frequency and how nonconforming batches will be handled.

Developing a Maple Deck With Vigor Tech

Our OEM/ODM support includes integrated services for deck design, materials, graphics, sampling, and complete-board manufacture. We assist clients in identifying the target audience and application, after which we determine the deck geometry, construction, selection of components, and acceptance criteria.

Having measurable performance targets for a 7 Ply Skateboard Manufacturer makes sourcing easier. Check out Vigor Tech's manufacturing and design capabilities and develop your own maple skateboard add-on specification to your product range within your quality targets.

FAQs

Q1. Can Vigor Tech Help Develop a Custom Deck Shape?

Vigor Tech's services include deck design support. Provide your preferred width, length, wheelbase, concave, and nose-and-tail geometry. The team can review feasibility and any tooling or sampling requirements.

Q2. What Skateboard Sizes Does Vigor Tech Offer?

Our  featured products include a 31 × 8-inch Maple Skateboard and a 29 × 7.25-inch Complete Skateboard. Compare foot support, stance, wheelbase, and complete-board configuration when choosing between these formats.

Q3. Does Vigor Tech Use Cold-Press Technology?

Vigor Tech offers cold-press technology among its manufacturing capabilities. Deck performance also depends on veneer quality, adhesive application, curing conditions, and geometry, so buyers should evaluate finished samples against agreed requirements.

Q4. Can Vigor Tech Support Private Label Skateboard Projects?

Yes. Vigor Tech offers OEM/ODM support covering deck design, materials, graphics, sampling, and complete-product development. Share your target market, riding application, preferred specifications, and branding requirements to define the project scope.

Q5. Can Vigor Tech Customize Skateboard Graphics?

Yes. Vigor Tech provides custom pattern printing. Before sampling, confirm artwork dimensions, placement, color references, and finish requirements so the approved sample provides a clear reference for production.
